Ford Courier three button remote with flip key FO21

£30.00
Do you want the key cut?
and / or
Upload first picture of your key
(see Key Cutting below)
Upload second picture of your key
(see Key Cutting below)
+
Description

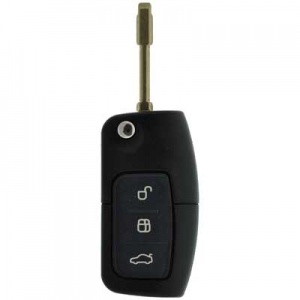

This is a three button remote flip key for the Ford Courier used from 1997 to 2002.

It is complete with the following:

  • Remote three button case with battery terminals
  • Remote three button circuit board - 433.92 MHz for the UK and Europe
  • Lithium battery CR2032 3V
  • Flip key housing with uncut key blade
  • Transponder chip - located within the flip key housing

The key can be cut if required.

Key Code

The key code will take the following format:

  • A letter T followed by six digits from the group 1, 2, 3 or 4.

For example: T114143 as shown below.

The key code is recorded on a black plastic tag like this:

Ford key code tag

This tag would have been attached to the keys when the car was new.

Key Cutting

The key can be cut from the key code or two decent digital pictures of an existing key for the vehicle.

A picture like this taken from the top:

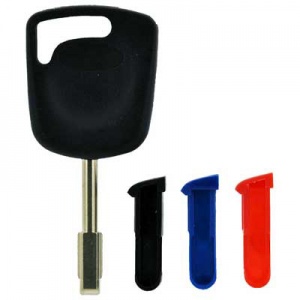

Ford cut key from top FO21T

And one like this taken from the side:

Ford cut key from side FO21T

If the key is cut from pictures the key code will be provided. If you ever require another key then one can be cut from this key code.

Key And Remote Programming

You can program additional keys into a Ford Courier from 1997 to 2002 using a manual procedure. To do this you must be in possession of two unique keys that start the vehicle. The transponder chip in one key can't be a copy or clone of the other.

The key programming procedure is available here:

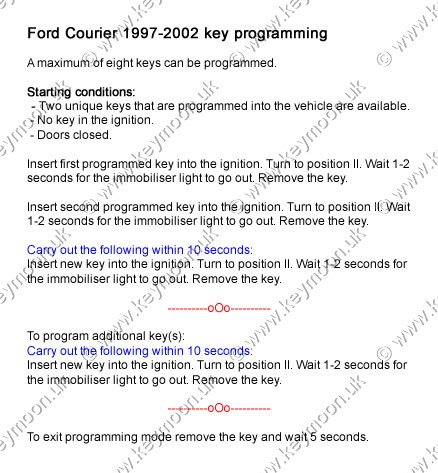

Ford Courier 1997-2002 key programming

If you do not have two unique keys then a diagnostic machine plugged into the vehicle will be required.

Alternatively... if a key that starts the vehicle is brought or sent to us we have the facilities to copy the transponder chip within it onto a new one. The new key will then start the vehicle without any further programming being required. Email us at enquiries@keymoon.uk for further information.

You can program additional remotes into a Ford Courier from 1997 to 2002 using a manual procedure.

The remote programming procedure is available here:

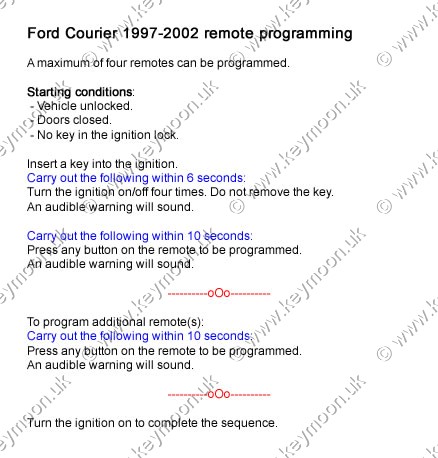

Ford Courier 1997-2002 remote programming
