Ford Fusion three button remote with flip key FO21

This is a three button remote flip key for the Ford Fusion used from 2002 to 2012.

It is complete with the following:

• Remote three button case with battery terminals
• Remote three button circuit board - 433.92 MHz for the UK and Europe
• Lithium battery CR2032 3V
• Flip key housing with uncut key blade
• Transponder chip - located within the flip key housing

The key can be cut if required.

The key code will take the following format:

• A letter T followed by six digits from the group 1, 2, 3 or 4.

For example: T114143 as shown below.

The key code is recorded on a black plastic tag like this:

This tag would have been attached to the keys when the car was new.

The key can be cut from the key code or two decent digital pictures of an existing key for the vehicle.

A picture like this taken from the top:

And one like this taken from the side:

If the key is cut from pictures the key code will be provided. If you ever require another key then one can be cut from this key code.

You can program additional keys into a Ford Fusion from 2002 to 2008 using a manual procedure. To do this you must be in possession of two unique keys that start the vehicle. The transponder chip in one key can't be a copy or clone of the other.

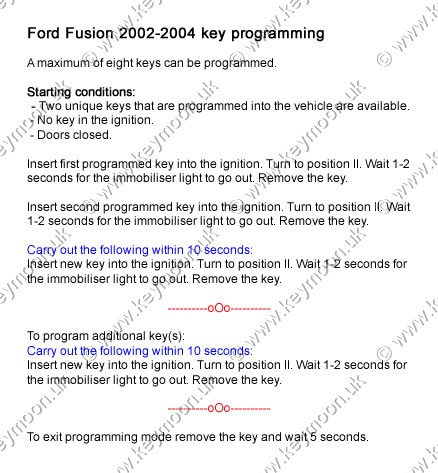

The key programming procedure is available here:

Ford Fusion 2002-2008 key programming

If you do not have two unique keys then a diagnostic machine plugged into the vehicle will be required.

Alternatively... if a key that starts the vehicle is brought or sent to us we have the facilities to copy the transponder chip within it onto a new one. The new key will then start the vehicle without any further programming being required. Email us at enquiries@keymoon.uk for further information.

You can program additional remotes into a Ford Fusion from 2002 to 2008 using a manual procedure.

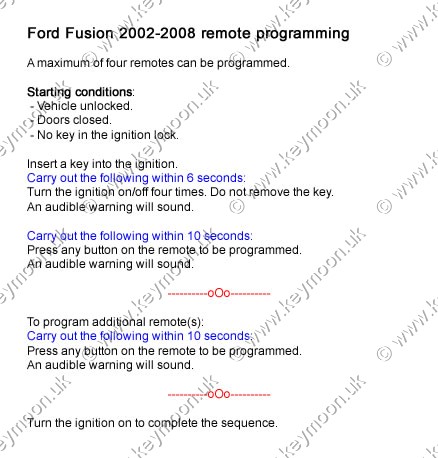

The remote programming procedure is available here:

Ford Fusion 2002-2008 remote programming

If you have a question about this item then please send a message to: enquiries@keymoon.uk
