Ford S-Max three button remote with flip key HU101

This is a three button remote flip key for the Ford S-Max used from 2006 to 2010.

It is complete with the following:

• Remote three button case with battery terminals
• Remote three button circuit board - 433.92 MHz for the UK and Europe
• Lithium battery CR2032 3V
• Flip key housing with uncut key blade
• Transponder chip - located within the flip key housing

The key can be cut if required.

The key code will take the following format:

• A four digit number in the range 0001 to 4000.

For example: 1141 as shown below.

The key code is recorded on a black plastic tag like this:

This tag would have been attached to the keys when the car was new.

The key can be cut from the key code or a decent digital picture of an existing key for the vehicle.

A picture like this taken from the top:

If the key is cut from a picture the key code will be provided. If you ever require another key then one can be cut from this key code.

Additional keys are programmed into a Ford S-Max from 2006 to 20010 using a diagnostic machine plugged into the vehicle.

Alternatively... if a key that starts the vehicle is brought or sent to us we have the facilities to copy the transponder chip within it onto a new one. The new key will then start the vehicle without any further programming being required. Email us at enquiries@keymoon.uk for further information.

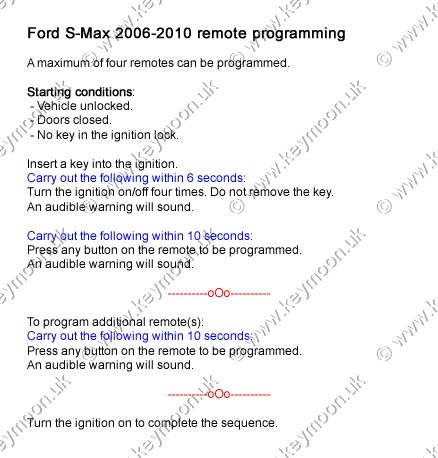

You can program additional remotes into a Ford S-Max from 2006 to 2010 using a manual procedure.

The remote programming procedure is available here:

Ford S-Max 2006-2010 remote programming

If you have a question about this item then please send a message to: enquiries@keymoon.uk
